VideoSecu Swivel Tilt Rotate TV Wall Mount for VIZIO 19 24 26 28 32 39" LCD LED E32h-C1 E322AR M320SL E390VL D39h-C0 WS2
Product details
| Management number | 230611228 | Release Date | 2026/06/18 | List Price | US$8.34 | Model Number | 230611228 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The mount WAML14B-A4 is a full motion TV wall mount. It fits most 15 19 22 23 24 26 28 29 32 37" TV Monitor (please check mounting hole patterns and weight). With the 4 adapters included, the mounting hole patterns can extend from 100/75mm to 200/200x100mm now. The mount supports screen weight up to 44lbs/20kg. This full motion technology allows the mount to tilt 5 degrees forward or backward, swivel 180 degrees from side to side, rotate 360 degrees for optimal viewing directions. Extension with fluid motion in every direction possible up to 15 inch from the wall or retracts to the wall to save space. Post-installation level adjustment allows the TV to perfectly level. Constructed with high quality steel material ensures more security and stability. Go ahead and order it now!
- • Multi-directional smooth adjustment tilt, swivel, rotate and extend for perfect viewing angle
- • Nesting arm design allows display to be folded parallel to the wall to save space
- • Durable steel construction with black powder-coated finish
- • Post-installation level adjustment allows the TV to perfectly level

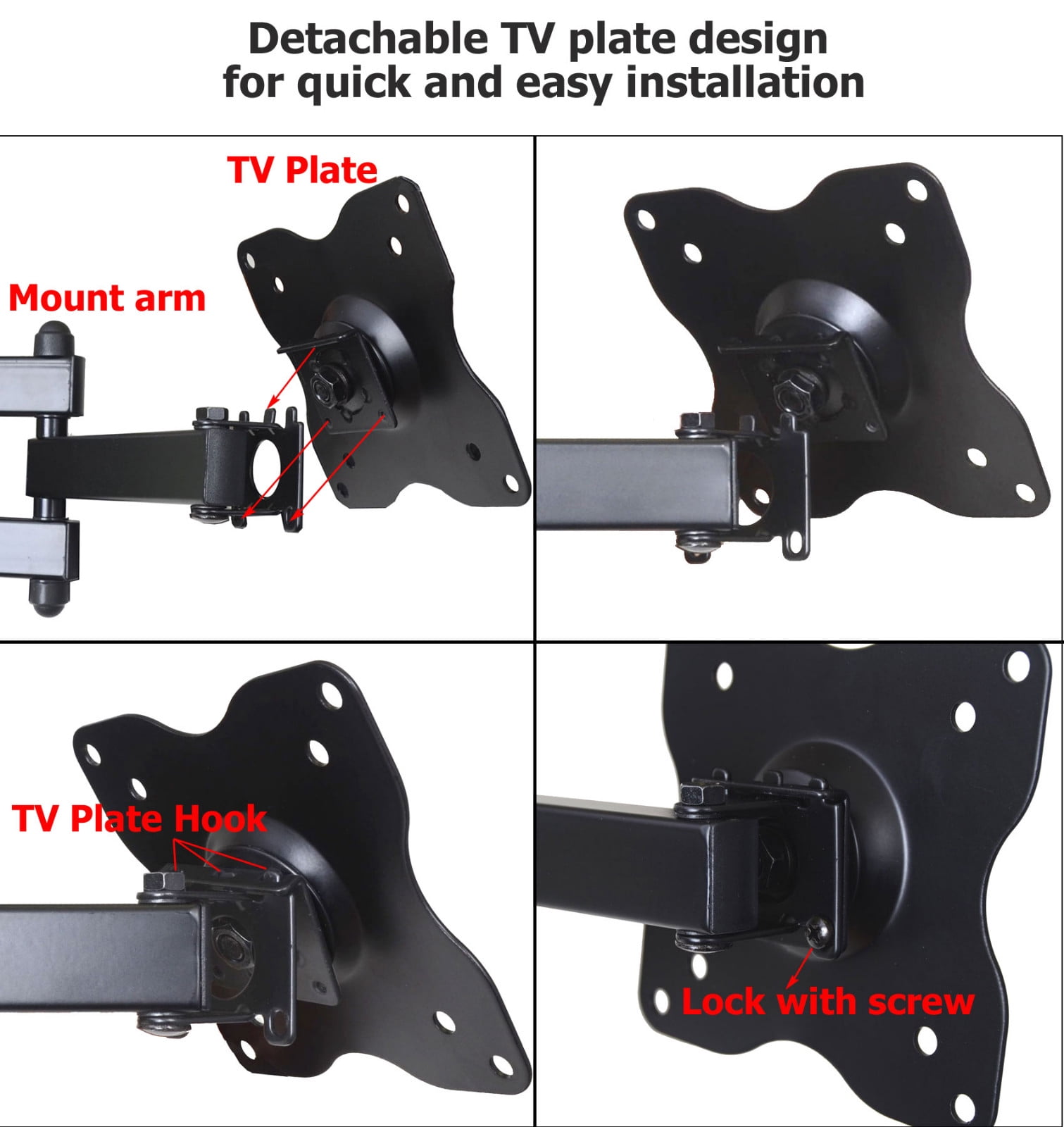

- • The detachable plate can be taken off, lift and hook design for quick and easy installation
- *Warning: This mount does not fit 32" or above TVs which were manufactured before 2013
- • High grade steel material offers loading capacity up to 44lbs

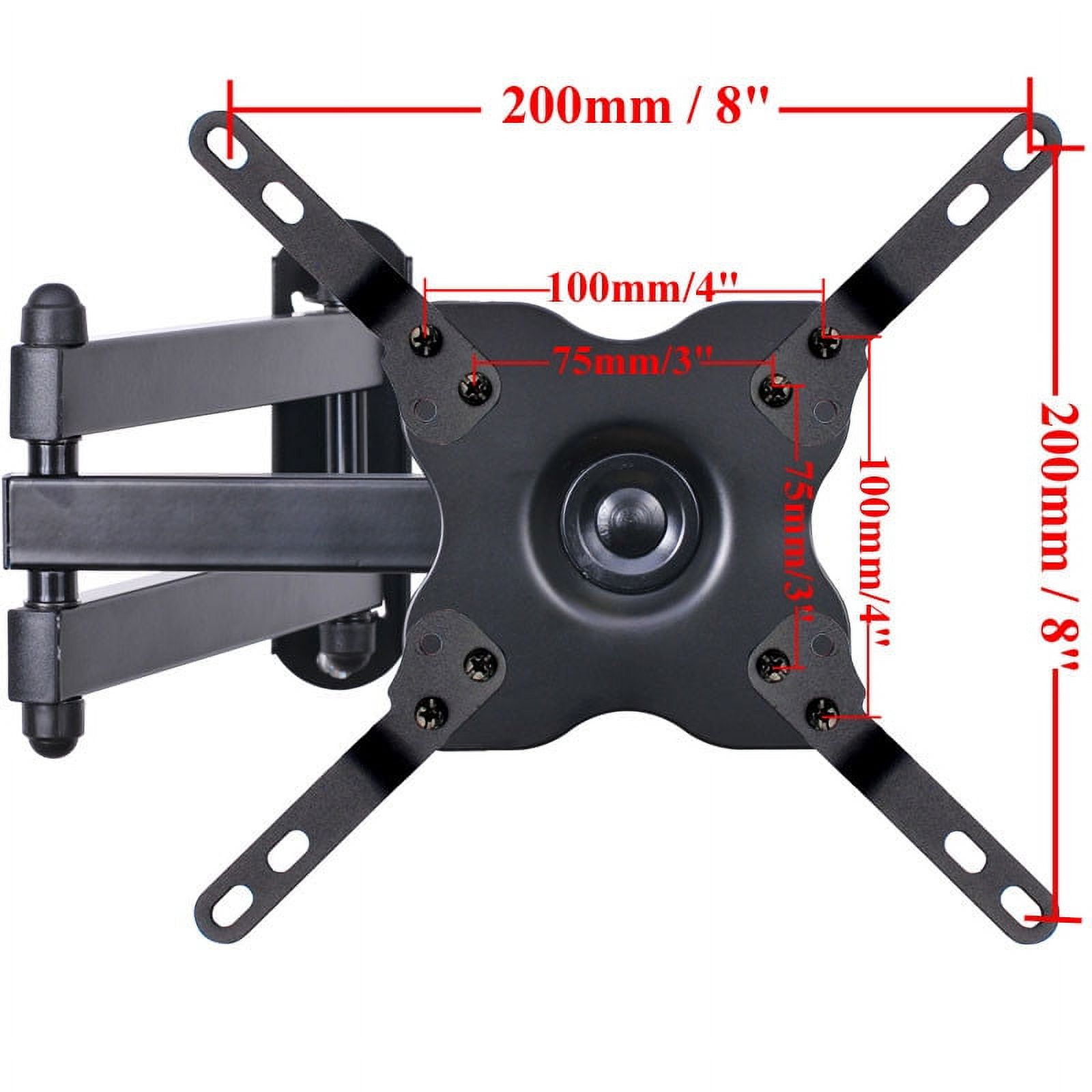

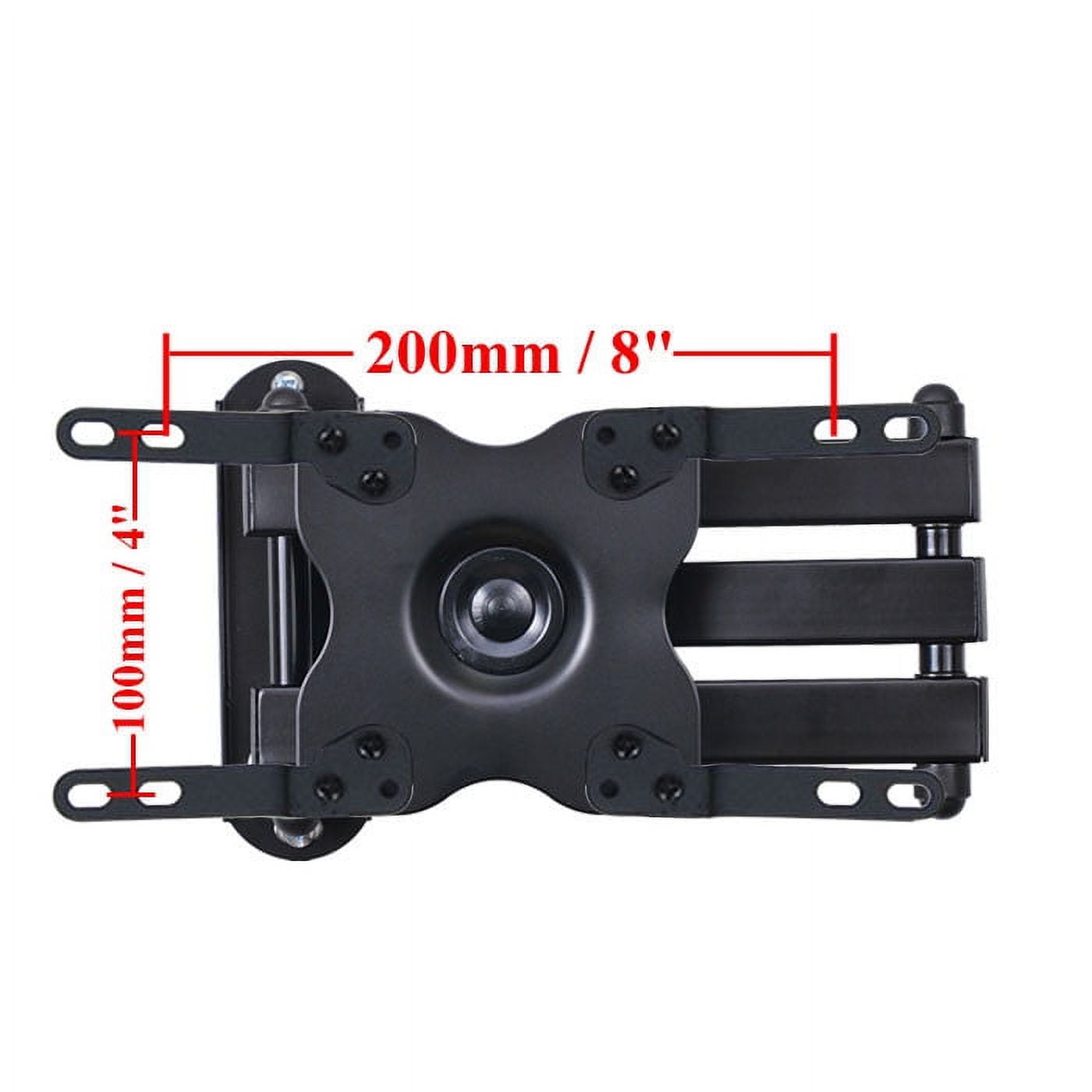

- • Fits mounting hole patterns: 200x200/200x100/100x100/75x75mm (8"x8"/8"x4"/4"x4"/3"x3")
- • Adjustable tilt -5° ~ +5°
- • Swivel 180°
- • Rotate 360°
- • Dual link arm extend out up to 15" with maximum flexibility or retract to 2.2" to save space
- • TV wall mount
- • Standard mounting hardware
- • User manual
- • Do not use the size of the screen to determine if the mount will fit.
- • Please check the weight of your TV or monitor, it must be less than 44 lbs.
- • Please look at the back of your TV or monitor, find the mounting holes and measure horizontal and vertical distance, if the pitch-row is one of the following data then the bracket will work for your screen. 200x200mm(8"x8"), 200x100mm(8"x4"), 100x100mm(4"x4"), 75x75mm(3"x3").
| Screen size | 39 |
|---|---|
| Max load | 44 lb |
| Mount pattern | 200 x 200, 200 x 100, 100 x 100, 75 x 75 |
| Mount type | Wall Mount |
| Tv & monitor mount type | Full-Motion TV Mount |
| Tilt angle | 5 º |
| Minimum screen size | 15" |
| Material | Steel |
| Brand | VideoSecu |
| Color | Black |
| Finish | powder-coated |
| Weight | 4 lb |
| Maximum depth | 15 in |
| Height | 9 in |
| Accessories | Standard mounting hardware, User manual |
| Retail packaging | Single Piece |
| Model | WAML14B-A4 |
